移动web开发调试工具AlloyLever介绍

腾讯AlloyTeam 2016-05-12 12:55:11 浏览 1,481 次

简介

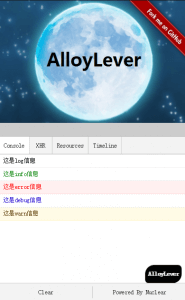

web调试有几个非常频繁的刚需:看log、看error、看AJAX发包与回包。其他的如timeline和cookie以及localstorage就不是那么频繁,但是AlloyLever都支持。如你所见:

特征

  • 点击alloylever按钮之间切换显示或隐藏工具面板

  • Console会输出所有用户打印的日志如console.[log/error/info/debug/debug]

  • Console会输出所有的错误信息(脚本错误和网络请求错误)

  • XHR面板会输出所有(XMLHttpRequest)AJAX请求和服务器端返回的数据

  • Resouces面板会输出所有的Cookie信息和LocalStorage

  • TimeLime面板会输出页面相关的生命周期里的时间段耗时情况

演示

http://alloyteam.github.io/AlloyLever/

Install

可以通过npm安装:

npm install alloylever

使用

你的页面只需要引用一个js即可!

<script src="alloylever.js"></script>

但是需要注意的是,该js必须引用在其他脚本之前。至于为什么,看下面的原理。

Console截获

window.console={
    wc:window.console
};
varself=this;
['log','error','warn','debug','info'].forEach(function(item){
    console[item]=function(msg){
        this.wc[item](msg);
        self.log(msg,item);
    }
});

重写了console方法,并且保存下window下真正的方法进行执行,并且注入自己的事件。

AJAX截获

varXHR=window.XMLHttpRequest;

window.XMLHttpRequest=function(){
    varxhr=newXHR();
    checkSuccess(xhr);
    returnxhr;
};

window.XMLHttpRequest.realXHR=XHR;

varself=this;

functioncheckSuccess(xhr){
    if((xhr.status>=200&&xhr.status<300)||xhr.status==304){
        self.option.xhrs.push({url:xhr.responseURL,json:JSON.stringify(JSON.parse(xhr.responseText),null,"\t")})
    }elseif(xhr.status>=400){
        console.error(xhr.responseURL+' '+xhr.status+' ('+xhr.statusText+')')
    }
    else{
        window.setTimeout(function(){
            checkSuccess(xhr);
        },0);
    }
}

如上面所示,重写了XMLHttpRequest对象。用户new的对象全部为重写后的,返回的是真正的。这样就可以拿到所有用户创建的XMLHttpRequest对象的实例进行监听。

Error截获

其中error包含两部分,第一部分是js报的错误,通过下面的方式截获:

window.onerror=function(errorMsg,url,lineNumber,column,errorObj){
    console.error('Error: '+errorMsg+' Script: '+url+' Line: '+lineNumber
        +' Column: '+column+' StackTrace: '+errorObj);
}

这里执行的时候console已经被重写了。所以自己的console面板也能看到错误。

第二部分是资源加载失败报的错,通过遍历HTML dom节点拿到所有的 js/css/img,然后再次发送请求。js和css通过XMLHttpRequest发请求,监听状态。,img通过new Image(),监听onerror。具体代码参见: https://github.com/AlloyTeam/AlloyLever/blob/master/src/component/alloy_lever/index.js

其他

Timeline通过timing.js获得所有信息,timing.js基于window.performance封装的类库。Cookie和localStorage通过js遍历得到。

相关

Github: https://github.com/AlloyTeam/AlloyLever
Issues: https://github.com/AlloyTeam/AlloyLever/issues

微信部门也有个方便的vConsole:https://github.com/WechatFE/vConsole

欢迎大家试用反馈。
